XVIVE U4 IEM Wireless System - 2.4GHz

XVIVE U4 IEM Wireless System - 2.4GHz

The XVIVE U4 IEM Wireless System is a compact, high-quality 2.4GHz wireless in-ear monitor system designed for musicians, performers, bands, studios and live sound applications. It provides a reliable wireless connection between your mixer, audio interface or other audio source and a set of headphones or in-ear monitors, giving performers the freedom to move without being restricted by monitor cables.

Featuring high-resolution 24-bit/48kHz digital audio, less than 5ms of latency and a wireless range of up to 90 feet (27 metres), the XVIVE U4 delivers clear, detailed monitoring for live performances, rehearsals, recording sessions and personal practice.

Professional Wireless In-Ear Monitoring

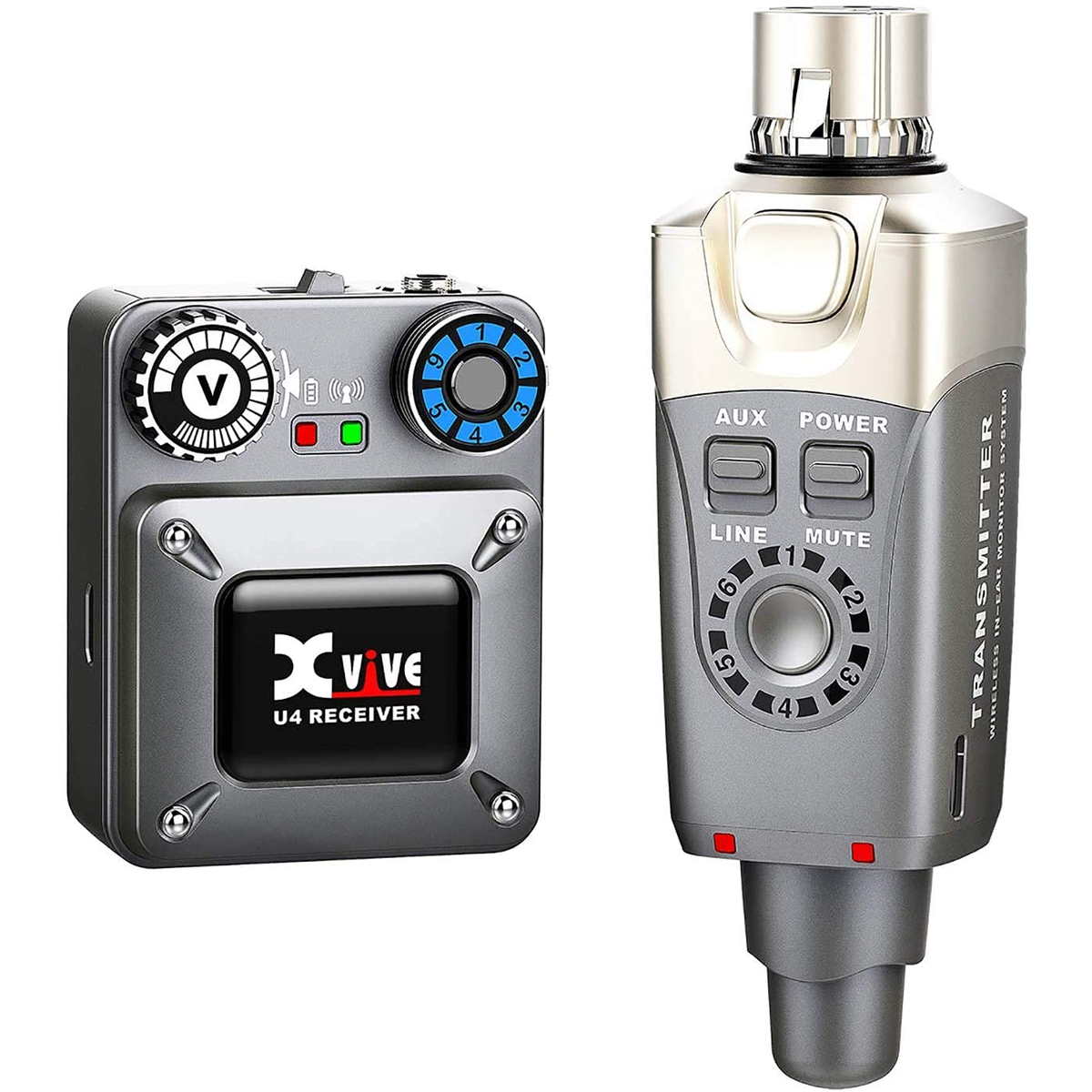

The U4 system consists of a wireless transmitter and a compact belt-pack receiver. Connect the transmitter to an output from your mixer, sound interface or other audio source, then connect your headphones or in-ear monitors to the receiver.

This creates a straightforward wireless IEM system that allows musicians to hear their monitor mix while moving freely around the stage or rehearsal space.

The U4 operates on the globally available 2.4GHz ISM wireless band and provides six selectable channels, with up to six systems capable of operating simultaneously.

High-Resolution 24-Bit/48kHz Audio

The XVIVE U4 is designed to deliver detailed, high-quality wireless audio with 24-bit/48kHz digital resolution and a frequency response of 20Hz–20kHz (-3dB).

With a signal-to-noise ratio of 107dB and latency of less than 5ms, the U4 provides a responsive monitoring experience suitable for vocals, guitars, drums, keyboards and other live performance applications.

The low latency helps maintain a natural feel when performing, while the wide frequency response ensures that your monitor mix remains clear and detailed.

Up to 90 Feet of Wireless Range

The XVIVE U4 provides a reliable wireless range of up to 90 feet (27 metres), giving performers plenty of freedom to move around a typical stage, rehearsal room or studio.

The transmitter and receiver communicate using the 2.4GHz wireless band, providing a convenient alternative to traditional wired monitoring systems.

Ideal for Bands and Live Performance

The U4 is particularly useful for bands and live musicians who need individual wireless monitor mixes. Multiple U4 systems can be used together, allowing up to six musicians to use the system simultaneously.

Each transmitter provides a separate monitor signal, making it possible to create different monitoring setups for different performers. This makes the U4 a flexible and cost-effective solution for live gigs, rehearsals and recording sessions.

It can be used for a wide variety of applications including:

• Live vocal and instrument monitoring
• Wireless in-ear monitoring for bands
• Studio recording
• Home recording
• Band rehearsals
• Guitar and bass practice
• Drum monitoring
• Musical performances
• Presentations and group communication
• Wireless monitoring for audio production

Wireless Monitoring for Recording

The XVIVE U4 can also be used in the studio or home recording environment. By sending an audio signal wirelessly from your interface or mixer to the U4 receiver, performers can monitor their audio without being physically connected to the recording system by a headphone cable.

This can be particularly useful when recording yourself, allowing you to move around the room while continuing to monitor your performance.

Private Guitar and Bass Practice

The U4 can also be used as a wireless headphone monitoring system for guitar and bass practice. Connect the output of a multi-effects processor, amp modeller or suitable audio device to the U4 transmitter, then monitor the signal through headphones or in-ear monitors.

This provides a convenient way to practise without needing a long headphone cable running between your equipment and your playing position.

Group Communication and Demonstrations

Additional U4 receivers can also receive the same signal from a transmitter, making the system useful for situations where one audio source needs to be distributed to multiple listeners.

This can be useful for demonstrations, presentations, tours, rehearsals and other situations where several people need to hear the same audio source clearly.

Rechargeable Wireless IEM System

Both the U4 transmitter and receiver feature built-in rechargeable batteries, providing approximately 5 hours of operation on a full charge.

Charging is carried out via USB using a standard 5V USB power source, with charging taking approximately 1.5–2.5 hours depending on the charger being used.

The compact transmitter and belt-pack receiver are designed to be portable and easy to integrate into a live or studio setup.

XVIVE U4 Key Features

• 2.4GHz wireless in-ear monitor system
• High-quality digital wireless audio
• 24-bit/48kHz audio resolution
• Less than 5ms latency
• Up to 90 feet / 27 metres wireless range
• 6 selectable wireless channels
• Up to 6 simultaneous channels
• 20Hz–20kHz frequency response (-3dB)
• 107dB signal-to-noise ratio
• Transmitter connects to mixer, audio interface or audio source
• Belt-pack receiver connects to headphones or in-ear monitors
• Suitable for live performances, rehearsals and studio recording
• Ideal for bands and individual musicians
• Can be used for wireless guitar and bass practice
• Multiple receivers can receive the same transmitter signal
• Built-in rechargeable batteries
• Approximately 5 hours battery life
• USB charging via standard 5V USB power source
• Compact and portable design

Specifications

• Wireless Type: 2.4GHz ISM worldwide open band

• Audio Resolution: 24-bit / 48kHz

• Wireless Range: Up to 90 feet / 27 metres

• Latency: Less than 5ms

• Switchable Channels: 6

• Simultaneous Channels: 6

• Frequency Response: 20Hz–20kHz (-3dB)

• Signal-to-Noise Ratio: 107dB

• Battery Life: Approximately 5 hours

• Charging: USB, 5V

• System: Transmitter and belt-pack receiver

The XVIVE U4 is a versatile 2.4GHz wireless IEM system for musicians and performers who want high-quality, low-latency monitoring without the restrictions of traditional headphone and monitor cables. With 24-bit/48kHz audio, six wireless channels and support for up to six simultaneous systems, it is an effective wireless monitoring solution for live gigs, rehearsals, recording studios and personal practice.
