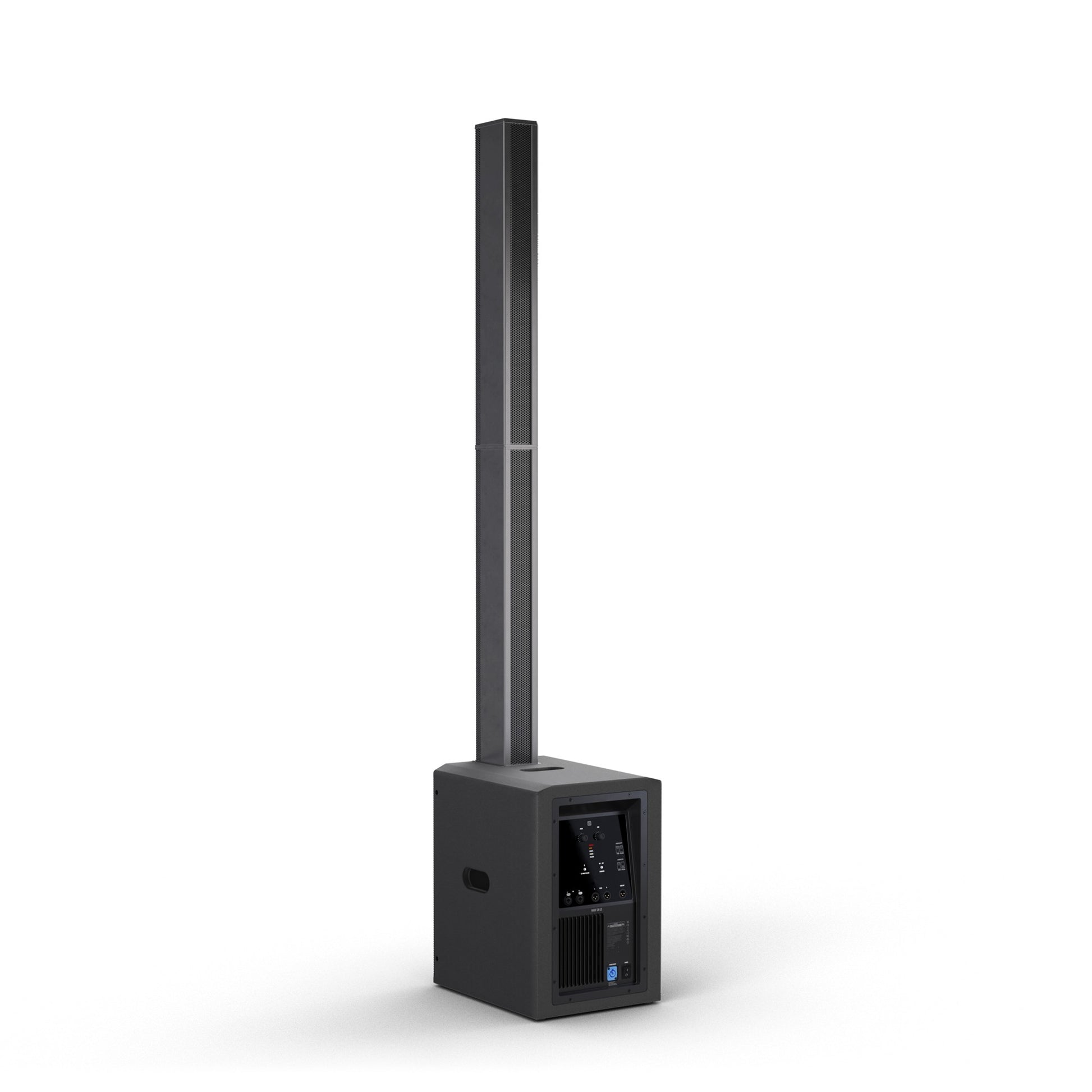

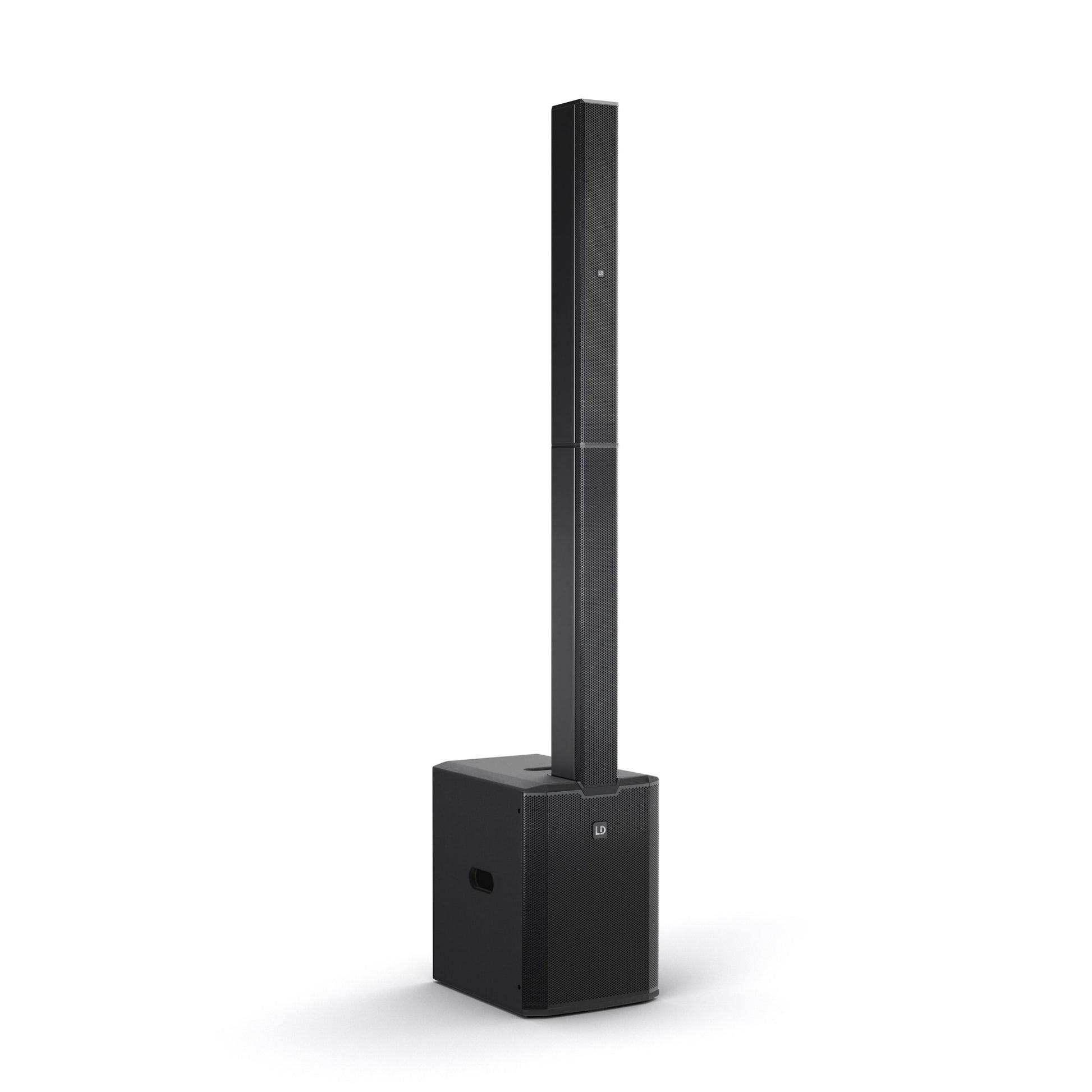

LD Systems MAUI 28 G3 Compact Cardioid Column PA system - Black

LD Systems MAUI 28 G3 Compact Cardioid Column PA system - Black

The LD Systems MAUI 28 G3 Compact Cardioid Column PA System is a premium all-in-one portable PA system engineered for professional live sound. Combining exceptional audio performance, elegant design, and effortless setup, the MAUI 28 G3 is the ideal solution for live bands, DJs, solo performers, corporate events, weddings, conferences, houses of worship, and venue installations.

Delivering an impressive 1,030W RMS (2,060W Peak) of Class-D power and a maximum 127 dB SPL, the MAUI 28 G3 produces rich, detailed sound with exceptional clarity and outstanding coverage. Whether you're performing to an intimate audience or providing sound reinforcement for larger events, this powerful column array speaker system offers consistent, balanced audio throughout the venue.

Cardioid Column Technology for Superior Sound Coverage

Unlike conventional column speakers, the MAUI 28 G3 features advanced cardioid column technology, providing controlled low-mid and midrange dispersion with up to 18 dB rear attenuation. This significantly reduces unwanted sound behind the speakers, minimising stage spill and feedback while improving vocal intelligibility and overall mix clarity.

The array consists of 12 x 3.5-inch full-range drivers paired with 2 x 1-inch high-frequency compression drivers, delivering smooth mids, crystal-clear highs, and an exceptionally wide 120° horizontal x 30° vertical dispersion pattern.

A specially developed BEM-optimised waveguide and precision phase plugs ensure even high-frequency distribution across the audience, maintaining consistent sound from the front row to the back of the venue.

Deep, Punchy Bass Performance

At the heart of the system is a powerful 12-inch bass-reflex subwoofer, engineered to produce deep, tight bass down to 37Hz. The redesigned bass-reflex cabinet enhances low-frequency performance while reducing unwanted airflow noise for cleaner bass reproduction.

For larger events or enhanced low-end performance, a second MAUI 28 G3 subwoofer can be added to increase bass output by up to 6 dB or configured in cardioid subwoofer mode at the touch of a button for even greater low-frequency control.

Next-Generation DynX® DSP Processing

The latest DynX® DSP Gen.2 digital signal processor continuously optimises system performance, delivering distortion-free sound even at maximum output levels.

Advanced DSP features include:

• Intelligent multiband limiting
• Dynamic EQ optimisation
• Time alignment
• Phase correction
• Thermal protection
• Overload protection
• Precision crossover management

The result is consistently powerful, transparent audio with maximum reliability during demanding live performances.

Wireless Bluetooth® 5.0 Audio Streaming

Integrated HD Bluetooth® 5.0 allows you to stream high-quality music wirelessly from smartphones, tablets, laptops, and other compatible devices, making the MAUI 28 G3 equally suited to live performance, background music, corporate presentations, and event playback.

Fast Plug-and-Play Setup

Designed for maximum convenience, the MAUI 28 G3 assembles in minutes without speaker stands or external speaker cables. Hidden multi-pin connectors automatically connect the column sections while ensuring exceptional mechanical stability.

Automatic system detection configures the speakers instantly, allowing you to focus on your performance rather than setup.

Built for Touring and Professional Use

The rugged birch plywood subwoofer cabinet features a highly durable polyurea coating, offering outstanding resistance to impacts, scratches, and the rigours of touring.

The lightweight powder-coated aluminium column sections combine professional durability with easy transport, making the system ideal for mobile entertainers and rental companies alike.

Key Features

• Professional all-in-one active column PA system
• 2,060W Peak / 1,030W RMS Class-D amplification
• Maximum SPL: 127 dB
• Advanced cardioid column technology for reduced rear sound
• 12" bass-reflex subwoofer with deep bass down to 37Hz
• 12 × 3.5" full-range drivers
• 2 × 1" high-frequency compression drivers
• Wide 120° x 30° sound dispersion
• BEM-optimised HF waveguide for even audience coverage
• DynX® DSP Gen.2 digital processing
• HD Bluetooth® 5.0 wireless audio streaming
• Automatic system recognition
• Fast cable-free assembly
• Expandable with a second MAUI 28 G3 subwoofer
• Durable birch plywood cabinet with polyurea finish
• Lightweight aluminium column construction
• Elegant black finish

Ideal For

• Live Bands
• Solo Artists
• Acoustic Performers
• DJs
• Wedding Entertainment
• Corporate Events
• Conference Audio
• Houses of Worship
• Schools & Colleges
• Hospitality Venues
• Rental & Production Companies

Specifications

• Brand: LD Systems
• Model: MAUI 28 G3
• System Type: Active Cardioid Column PA System
• Amplifier Power: 1,030W RMS / 2,060W Peak
• Maximum SPL: 127 dB
• Subwoofer: 12" Bass Reflex
• Midrange Drivers: 12 × 3.5"
• High Frequency Drivers: 2 × 1"
• Frequency Response: 37Hz and above
• Bluetooth: HD Bluetooth® 5.0
• DSP: DynX® DSP Gen.2
• Dispersion: 120° Horizontal × 30° Vertical
• Cabinet Material: Birch Plywood (Subwoofer)
• Column Material: Powder-Coated Aluminium
• Finish: Black
